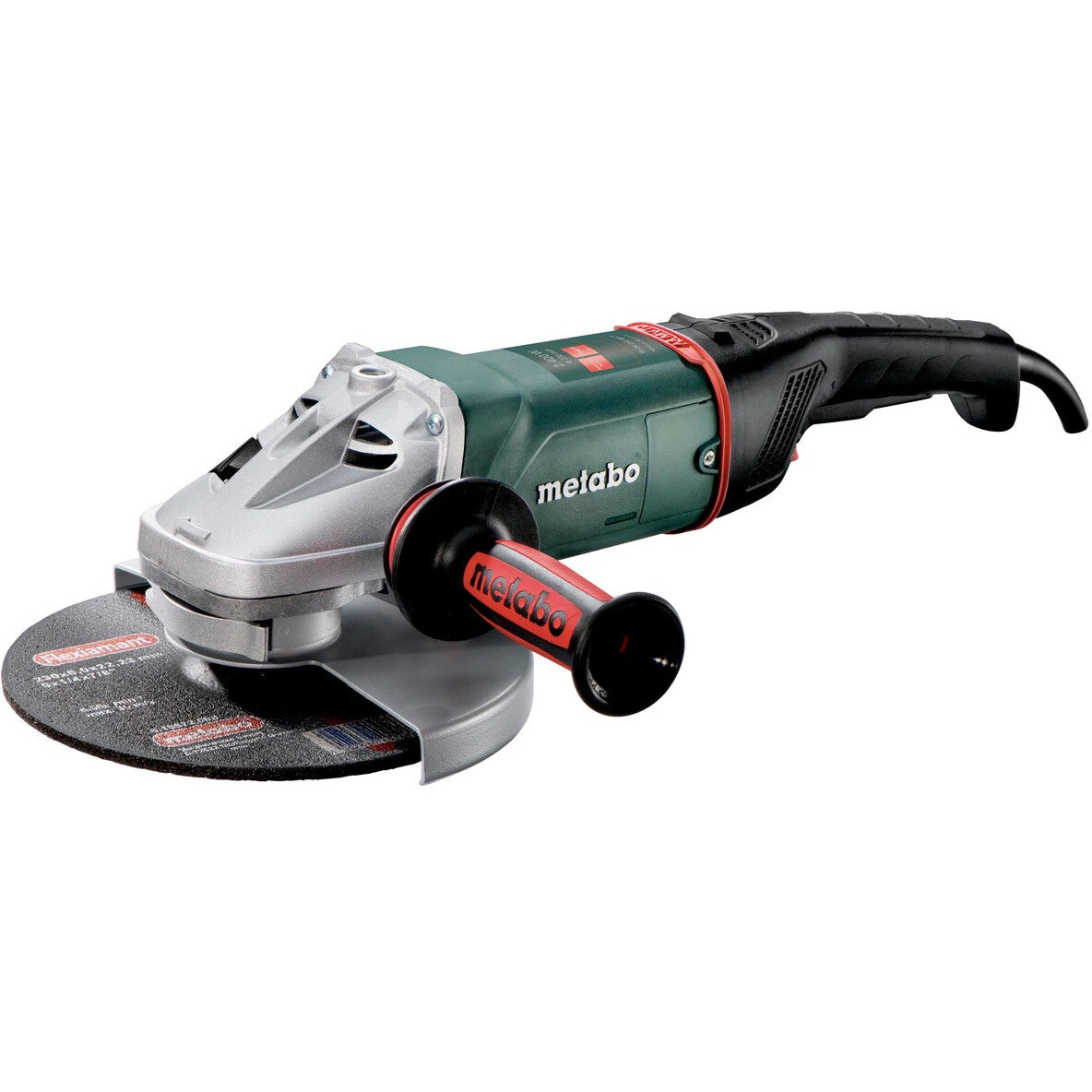

MTO Grinder 9" Angle W 24-230 MVT

• Metabo Marathon motor with patented dust protection for long service life
• Deadman's switch for high user protection
• Rotating back handle and side handle can be mounted at 3 positions for optimum handle position also when cutting
• Tool-free adjustable guard; twist-proof
• Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health
• Metabo safety switch prevents unintentional start
• Auto-stop carbon brushes to protect the motor

• Disc-Ø: 230 mm // 9 "
• Rated input power: 2400 W
• Output power: 1600 W
• No-load speed: 6600 rpm
• Speed at rated load: 4600 rpm
• Torque: 17 Nm / 150 in-lbs
• Spindle thread: M 14
• Handle circumference: 144 mm / 5.669 "
• Weight (without power cable): 5.8 kg / 12.8 lbs
• Cable length: 4 m / 13 ft

• Surface grinding: 6.2 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Grinding with sandpaper: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

• Sound pressure level: 94 dB(A)
• Sound power level (LwA): 105 dB(A)
• Uncertainty of measurement K: 3 dB(A)
