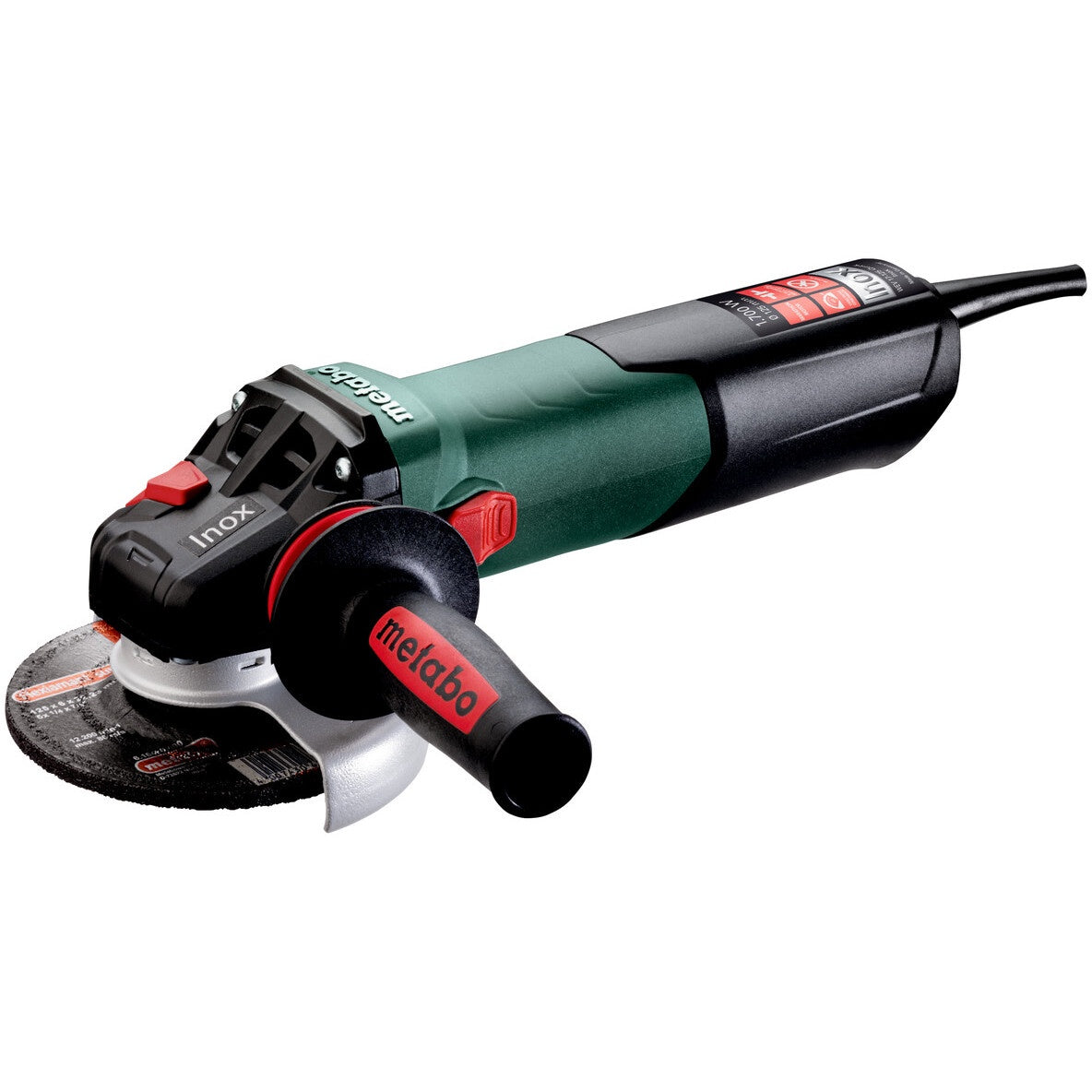

MTO Grinder 5" Variable Inox WEV 17-125 Q IN

• Perfect processing of stainless steel: robust, powerful angle grinder with high gear reduction and adjustable reduced speed for cool finish
• Longer service life, more power: the Metabo Marathon-motor with patented dust protection, up to 20% more overload capacity and 50% more torque
• Vario Tacho Constamatic (VTC) Full-wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
• Tool free, fast disc change at the touch of a button with the Metabo M-Quick-System
• Tool-free adjustable guard; twist-proof
• Low-vibration side handle Metabo VibraTech (MVT)
• Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress
• Electronic overload protection, soft start and restart protection
• Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting
• Auto-stop carbon brushes to protect the motor

• Disc-Ø: 125 mm // 5 "
• Rated input power: 1700 W
• Output power: 1040 W
• No-load speed: 2000 - 7600 rpm
• Speed at rated load: 7600 rpm
• Torque: 5 Nm / 44 in-lbs
• Spindle thread: M 14
• Handle circumference: 206 mm / 8 1/8 "
• Weight (without power cable): 2.5 kg / 5.5 lbs
• Cable length: 4 m / 13 ft

• Surface grinding: 4.7 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Polishing: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Grinding with sandpaper: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

• Sound pressure level: 93 dB(A)
• Sound power level (LwA): 104 dB(A)
• Uncertainty of measurement K: 3 dB(A)
