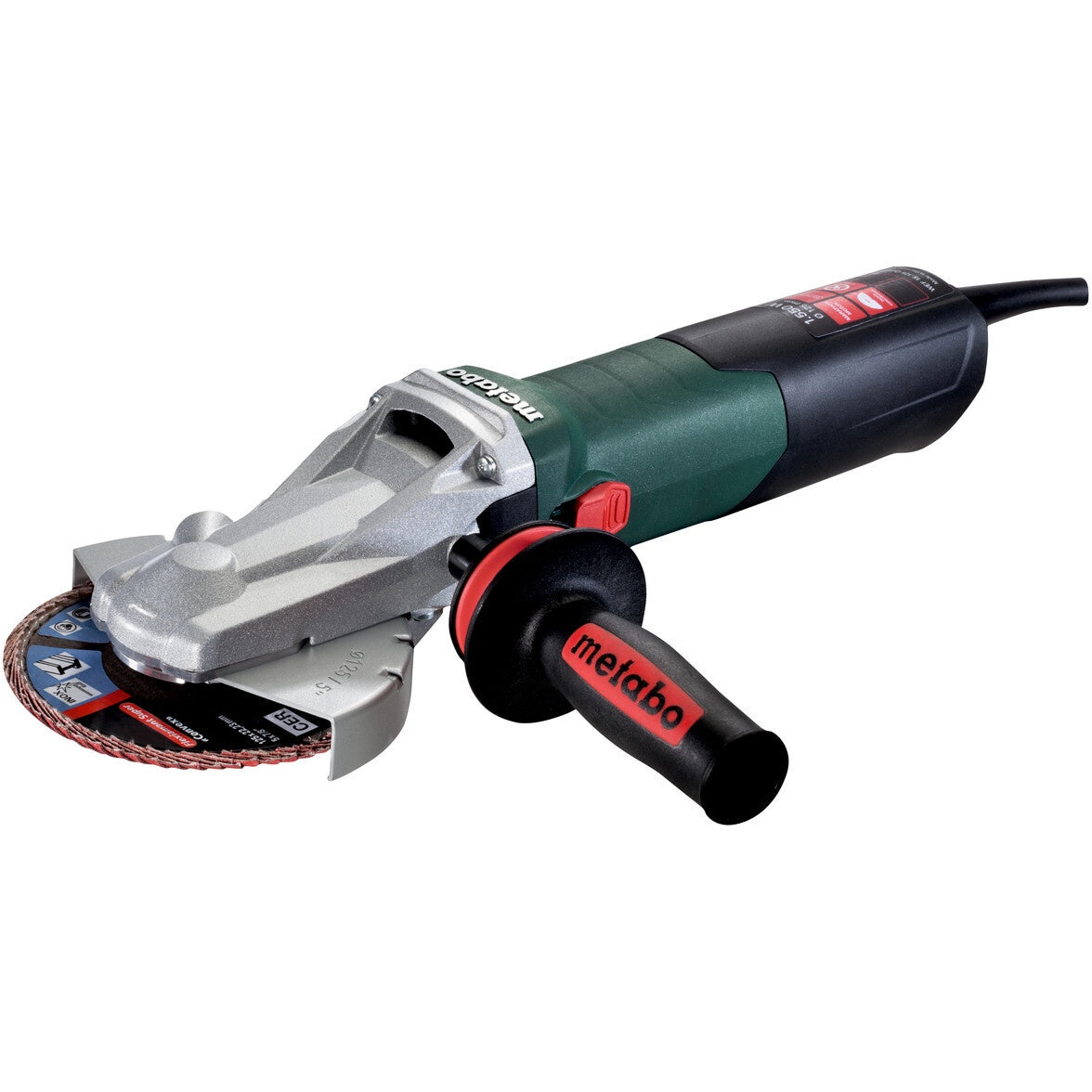

MTO Grinder 5" Flat Head WEF 15-125 Q

• Powerful flat-head angle grinder for working quickly in acute angles down to 43°
• Particularly developed for the removal of weld slag, rust or paint in narrow frame constructions and for working in tight spaces
• Longer service life, more power: the Metabo Marathon-motor with patented dust protection, up to 20% more overload capacity and 50% more torque
• Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
• Metabo Quick for tool-free disc change by means of a quick-locking nut
• Tool-free adjustable guard; twist-proof
• Metabo VibraTech (MVT) side handle for vibration damping to protect the user's health
• Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety
• Electronic overload protection, soft start and restart protection
• Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting
• Auto-stop carbon brushes to protect the motor

• Minimum accessible angle: 43 °
• Disc-Ø: 125 mm / 5 "
• Rated input power: 1550 W
• Output power: 940 W
• No-load speed: 11000 rpm
• Speed at rated load: 11000 rpm
• Torque: 3.5 Nm / 31 in-lbs
• Spindle thread: M 14
• Weight (without power cable): 2.7 kg / 5.9 lbs
• Cable length: 4 m / 13 ft
• Handle circumference: 206 mm / 8 1/8 "

• Surface grinding: 6 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Grinding with sandpaper: 3.6 m/s²
• Uncertainty of measurement K: 1.5 m/s²

• Sound pressure level: 91 dB(A)
• Sound power level (LwA): 102 dB(A)
• Uncertainty of measurement K: 3 dB(A)
