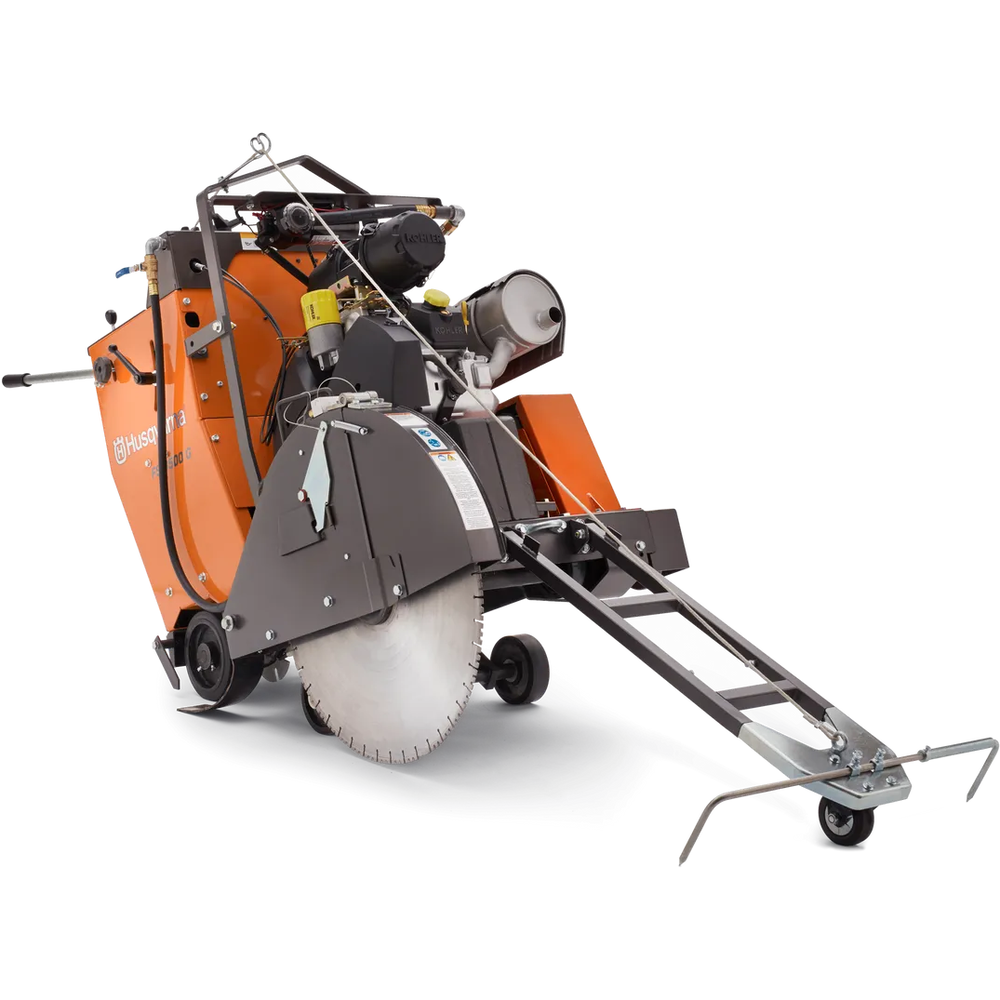

HSQ Floor Saw Propelled FS3500G 30" ECH980
FS 3500 G is a self-propelled floor saw ideal for small to medium patch and service jobs. Equipped with a 27.5 kW Kohler gasoline engine. It is lightweight, low profiled, easy to manoeuvre and service. The Poly-V belt together with a self-adjusting belt tensioner ensures stable power levels at the blade shaft. Cutting depth capacity up to 311 mm with a 750 mm diamond blade. Comes standard with adjustable handle bars, engine tachometer and hour meter. Water pump kit and light kit available as options.
ALL PRODUCTS SPECIFICATIONFS 3500 G |
FS 3500 G ST5 | 750MM | CE967 67 37‑10 |
---|---|
ENGINE | |
Output power (As rated by the engine/motor manufacturer) | 28.3 kW |
Engine cooling | Air |
Fuel tank volume | 23.8 l |
Number of strokes | 4-stroke engine |
Cylinders | 2 |
Power source | Petrol |
CUTTING EQUIPMENT | |
Cutting depth, max | 312 mm |
Blade diameter, max | 750 mm |
Arbor diameter | 25.4 mm |
Blade depth control | Electric hydraulic |
TRANSMISSION | |
Transmission speed forward | 51 m/min |
Transmission speed reverse | 0 m/min |
Output shaft RPM, Speed 1 | 2,580 rpm |
Output shaft RPM, Speed 2 | 1,860 rpm |
Output shaft RPM, Speed 3 | 1,860 rpm |
DIMENSIONS | |
Product size length | 1,168 mm |
Product size width | 807 mm |
Product size height | 1,152 mm |
Weight (complete product w/o side packed articles) | 393 kg |
