Topcon (TCN)
TCN Laser Receiver Digital LS-100D w/ Holder
Couldn't load pickup availability
If you require freight, please call the office during opening hours
Long Range Laser Receiver

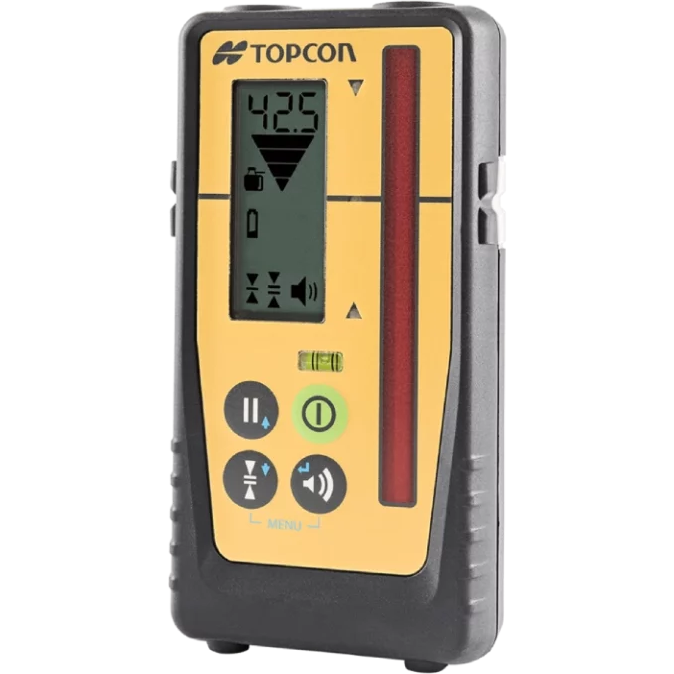

Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.
It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the results. For added versatility, three coloured LED’s and a strong magnet mount are imbedded for vertical operation, ideal for steel erection or operator grade checking while excavating.
To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI alert) or when the laser battery is low.
| Receiver | LS-100D |
| Detective Precision | ±0.5 mm / ±1.0 mm / ±2.0 mm / ±5.0 mm |
| Detective Range | 90 mm (-30–+60 mm) ±45° |
| Working Area | 2–800 m |
| Arrow Display | 9 channel |
| Numeric Readout | mm / cm / inch / f. inch |
| Ingress Rating | IP67 |
| Operating Time | Alkaline: 45 h |
