Topcon (TCN)

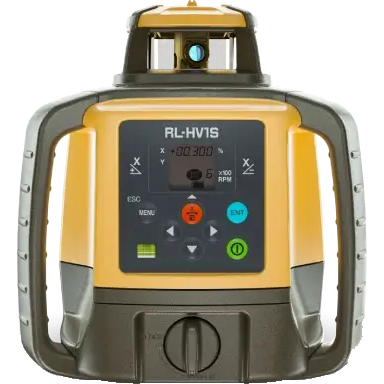

TCN Laser Level RL-HV1S Grading Single w/ Receiver Kit
Couldn't load pickup availability
If you require freight, please call the office during opening hours
Single-slope applications
Designed for a variety of tasks, it can be used for single-slope applications. Slopes up to ±5% (±15% with tilting plate) can be used in the X axis.
High powered
With an operating range of over 800 m (diameter), the RL-HV1S has the power to cover even the biggest projects. (Laser class 1)
Long battery life
Contractors who want a laser with a long battery life will love the RL-HV1S. With an operating time of 120 hours on alkaline batteries or 65 hours with the rechargeable Ni-MH battery pack, this laser will still be working long after others have quit.
All-weather dependability
With the IP66 rating, the RL-HV1S is “job site tough” and can withstand dust, a sudden shower, and even torrential rainfall.
Bluetooth Laser Manager (App download)
Compatibility for iOS and Android provides wireless remote control using a cell phone to adjust slope and check calibration. No special remote control needed.
| Laser | RL-HV1S |
| Accuracy | H: ±10" |
| Self-Levelling Range | H: 5° |
| Working Area | 800 m |
| Grading Range | X: ±5% (±15% with tilting plate) |
| Rotation Speed | 300/600 RPM |
| Ingress Rating | IP66 |
| Operating Time | Alkaline: 120 h / Ni-MH: 65 h |
