Topcon (TCN)

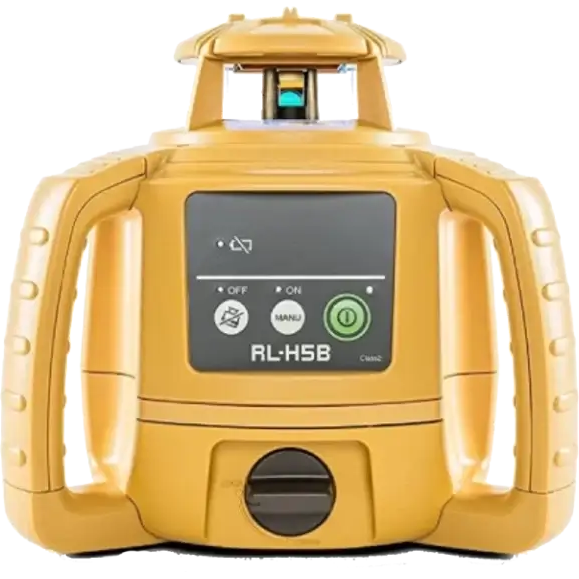

TCN Laser Level RL-H5B Rotating w/ Receiver Kit
Couldn't load pickup availability
If you require freight, please call the office during opening hours
Long-range high accuracy laser
With great distance and high-accuracy, the RL-H5 Series is simple to use for checking elevations.
Easy to use
With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5B gets disturbed on the job it relevels itself automatically. The self-leveling motors are accurate to ±20 arc seconds.
Long range operation
Need to shoot elevations up to 400 m from your laser? No problem – this instrument has the power and range to cover a 400 m diameter job site.
Long battery life
The RL-H5B provides up to 100 hours of continuous usage with 4 (D) cell batteries.
All weather dependability
With the IP66 rating, the RL-H5B is “job site tough” and can withstand dust, a sudden shower and even torrential rainfall.
Laser | RL-H5A |
Accuracy | H: ±20" |
Self-Levelling Range | H: 5° |
Working Area | 400 m |
Rotation Speed | 600 RPM |
Ingress Rating | IP66 |
Operating Time | Alkaline: 100 h |
