TCN Laser Level RL-200 2S Grading Long Range w/ Receiver Kit
Couldn't load pickup availability
If you require freight, please call the office during opening hours

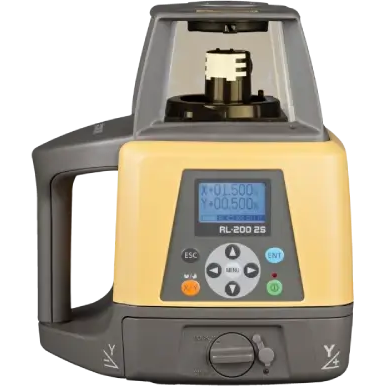

RL-200 Dual Slope Grading
Topcon’s RL-200 Series revolutionary encoding system provides the highest grade repeatability, 7 arc seconds, of any other laser. No one even comes close. Setup after setup, time after time, you’re always right on grade.
The RL-200 2S provides dual slopes up to ±10% in the X axis, or up to an industry leading -5 to +25% in the Y axis.
Control the RL-200 2S - remotely
When the RL-200 2S is operating, the RC-400 displays all operating information up to 300 m away. Change grade, select menu settings, check operational status, even verify battery life, all without touching the laser.
Laser | RL-200 2S |
Accuracy | H: ±7" |
Repeatability | 7" |
Working Area | 1'100 m |
Grading Range | X: ±10% / Y: -5–25% |
Rotation Speed | 300/600/900 RPM |
Ingress Rating | IP66 |
Operating Time | Alkaline: 100 h / Ni-MH: 90 h |
