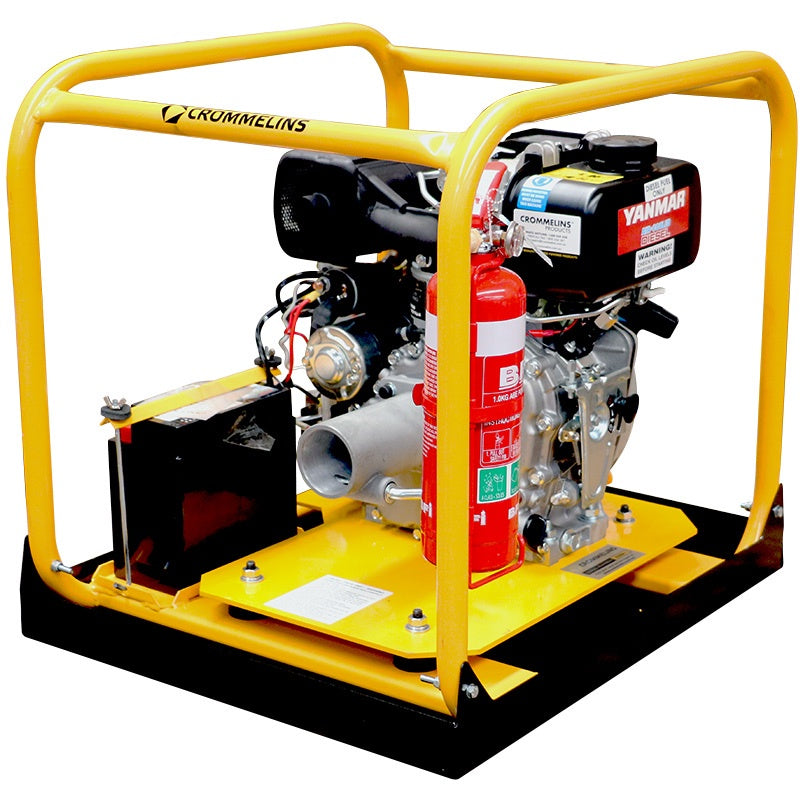

CRM Drive Unit Minespec DU47YDEM L48N Diesel Electric (PRICE ON APPLICATION)
The diesel drive unit is mine site safe* and ready to use.
This drive unit diesel 4.7 HP will drive submersible flexible drive pumps and concrete vibrators using its universal 3-dog style drive shaft. The electric start and mine-spec model are ideal for construction jobs on mine sites to power a wide range of flexible shaft equipment.
Mine-spec includes emergency stop, fire extinguisher, bunding, battery isolator and also recoil start lock to make it site safe* and ready for use.
Features include an Australian fabricated heavy-duty steel roll frame. Electric start allows an operator the ease of turning a key to start the unit. Quick action couplings allow for easy connections. It also features a rubber-mounted sub-frame to reduce vibration from the engine and shaft. Powered by a reliable Yanmar diesel engine.
Customisation options include; long-range fuel tank and also a central lifting bar. There is also a range of 28 to 60 mm shafts available as well as extension shafts and pumps.
Assembled and tested in Australia. The drive unit comes with a two-year manufacturer’s warranty. It is confidently backed with service agents covering every part of Australia.
*Check your local requirements
Model Number | DU47YDEM |
---|---|
Drives Vibrators (Up to) | 65mm |
Drive Pumps (Up to) | 50mm |
Engine Make | Yanmar |
Engine | 4.7hp L48 |
Starting System | Electric Start |
Fuel Type | Diesel |
Fuel Tank | 2.4L |
db @ 7m | 94db at 1m |
Weight (kg) | 60kg |
Dimensions (LxWxH) mm | 600 x 510 x 550mm |
Package (LxWxH) | 770 x 530 x 560mm |
Manufacturers Warranty | 2 Years |
