CRM Drive Unit Minespec DU10YDEM L100 Diesel Electric (PRICE ON APPLICATION)
Diesel drive unit assembled and tested in Australia.
This drive unit diesel 10.0 HP will drive submersible flexible drive pumps and concrete vibrators using its universal 3-dog style driveshaft. The electric start model is ideal for construction jobs on mine sites to power a wide range of flexible shaft equipment.
Mine-spec includes emergency stop, fire extinguisher, bunding, battery isolator and also recoil start lock to make it site safe* and ready for use.
Features include an Australian fabricated heavy-duty steel roll frame. Electric start allows an operator the ease of turning a key to start the unit. Quick action couplings allow for easy connections. It also features a rubber-mounted sub-frame to reduce vibration from the engine and shaft. Powered by a reliable Yanmar diesel engine. There is also a range of 28 to 60 mm shafts available as well as extension shafts and pumps.

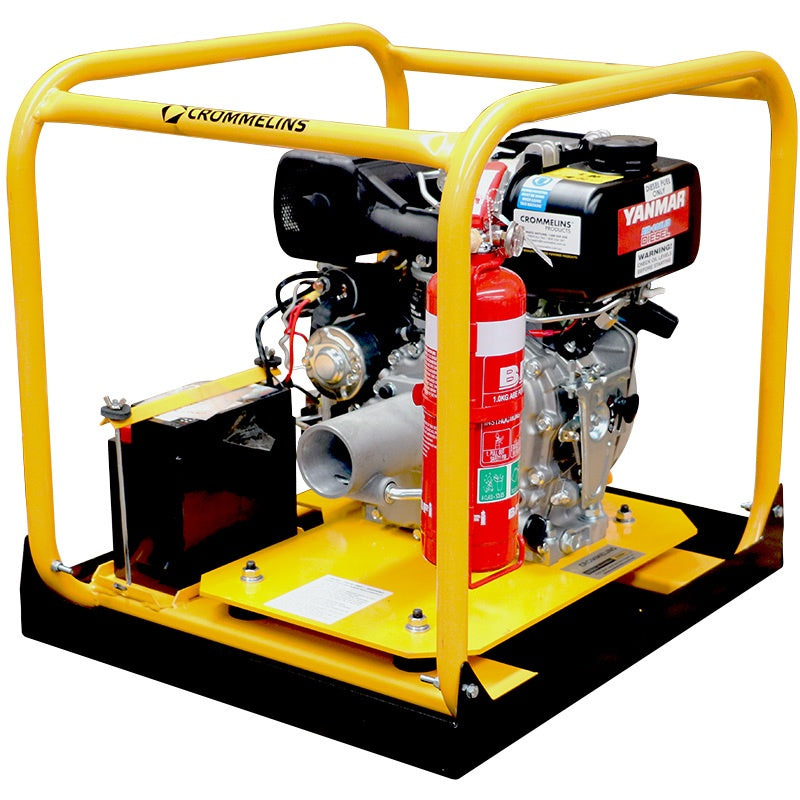

Assembled and tested in Australia. The drive unit comes with a two-year manufacturer’s warranty. It is confidently backed with service agents covering every part of Australia. Please note: photo shown is not mine-spec.
SPECIFICATIONS
Model Number | DU10YDEM |
---|---|
Drives Vibrators (Up to) | 75mm |
Drive Pumps (Up to) | 75mm |
Engine Make | Yanmar |
Engine | 10.0hp L100 |
Starting System | Electric Start |
Fuel Type | Diesel |
Fuel Tank | 5.4L |
db @ 7m | 97db at 1m |
Weight (kg) | 103kg |
Dimensions (LxWxH) mm | 850 x 510 x 650mm |
Package (LxWxH) | 950 x 530 x 660mm |
Manufacturers Warranty | 2 Years |
