Crommelins (CRM)

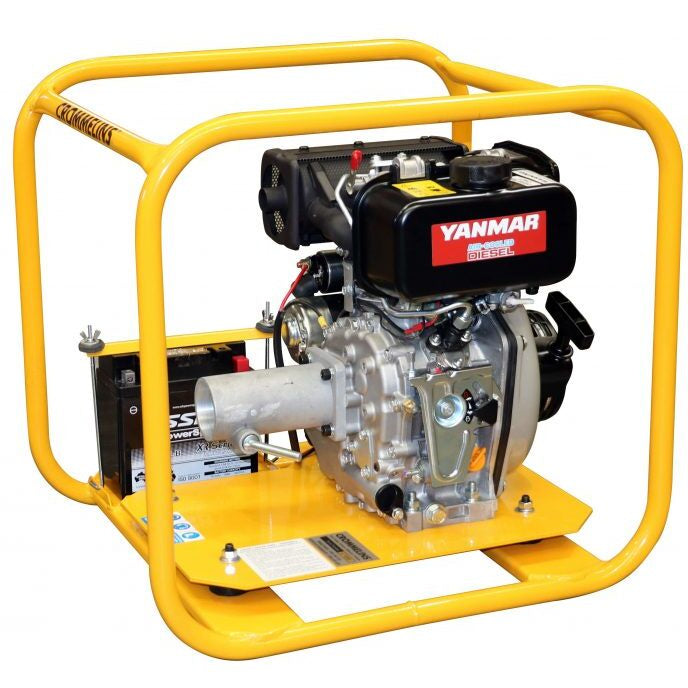

CRM Drive Unit Caged DU47YDE L48N Diesel Electric

Regular price $5'030.00 AUD inc. GST
Regular price Sale price $5'030.00 AUD inc. GST
Sale Sold out
Tax included.

Diesel drive unit assembled and tested in Australia.

This drive unit diesel 4.7 HP will drive submersible flexible drive pumps and concrete vibrators using its universal 3-dog style drive shaft. The electric start model is ideal for construction jobs on mine sites to power a wide range of flexible shaft equipment.

Features include an Australian fabricated heavy-duty steel roll frame. Electric start allows an operator the ease of turning a key to start the unit. Quick action couplings allow for easy connections. It also features a rubber-mounted sub-frame to reduce vibration from the engine and shaft. Powered by a reliable Yanmar diesel engine.

Customisation options include; emergency stop and mine specification. There is also a range of 28 to 60 mm shafts available as well as extension shafts and pumps.

Assembled and tested in Australia. The drive unit comes with a two-year manufacturer’s warranty. It is confidently backed with service agents covering every part of Australia.


Model Number DU47YDE
Drives Vibrators (Up to) 65mm
Drive Pumps (Up to) 50mm
Engine Make Yanmar
Engine 4.7hp L48
Starting System Electric Start
Fuel Type Diesel
Fuel Tank 2.4L
db @ 7m 94db at 1m
Weight (kg) 50kg
Dimensions (LxWxH) mm 600 x 510 x 550mm
Package (LxWxH) 770 x 530 x 560mm
Manufacturers Warranty 2 Years
